Features

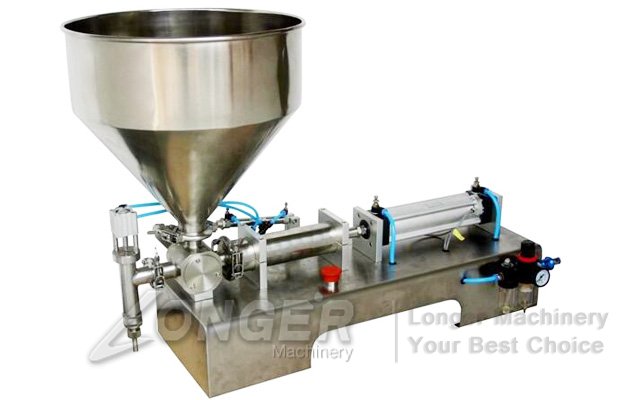

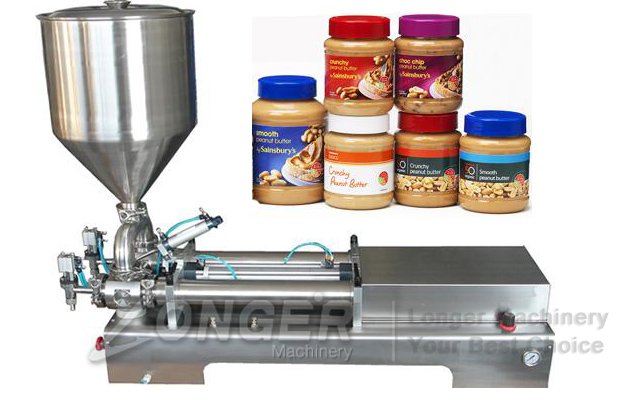

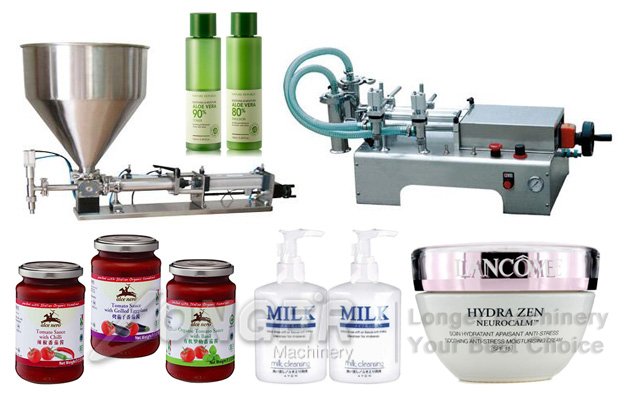

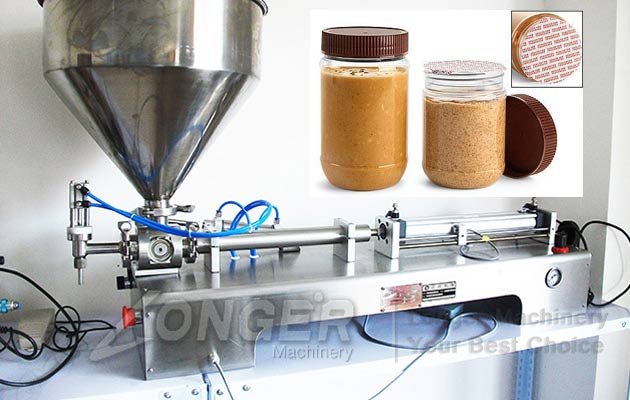

This Horizontal Type Jam Filling Machine is suitable for liquid, jam, cream, peanut butter, tomato sauce, juice, water, vinegar, garlic paste, ginger paste, shampoo and chemical etc..Semi-automatic piston type filling machine, stainless steel 304, with reasonable structure.Extract and hit by cylinder, a piston material with one-way valve to control material flow, with magnetic cylinder stroke line switch control, can adjust the volume of irrigation. Also, we The introduction of foreign advanced filling machine technology, and has carried on the further reform and innovation, the more simple and reasonable structure, high precision, operating more simple, is the ideal choice of the paste filling.
Horizontal pneumatic paste filling machine, cylinder, chassis and hopper are made of stainless steel, pistons are made of PTFE, pneumatic parts are imported pneumatic components, compliance with GMP requirements. The filling quantity and filling speed can be adjust, foot switch and automatic filling function, high precision, simple structure and easy operation.
Related Product: Sauce Sachet Filling Machine
Related Product: Sauce Sachet Filling Machine
Technical Data
Model | Remark | Machine Size(mm) | Weight(kg) | Voltage |
LGGC300 |
Paste filling machine, without mixing, S stands for double-head filling, the number indicates the maximum filling volume |
1100*400*350 | 28 |
Voltage200-250V 50 or 60HZ |
LGGC500 | 1200*350*350 | |||
LGGC1000 | 1200*380*350 | |||
LGGC2000 | 1350*450*380 | |||
LGGC300S | 1250*480*350 | 49 | ||
LGGC500S | 1250*480*350 | 55 | ||
LGGC1000S | 1250*480*350 | 58 | ||
LGGC2000S | 1300*620*380 |
