Features

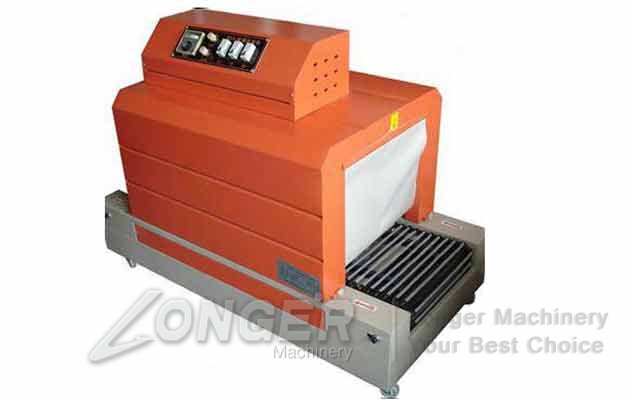

Heat shrink tunnel packing machine is also known as shrink machine, shrink packaging machines, shrink film packaging machine, sealing products for enterprises. Moisture and pollution may also
prevent the product from external impact and damage, it is one of the market shrink-wrapped product more advanced packaging methods. The device is an actuator cylinder. The two five-way solenoid valve to control the forward and backward. It is perfect used for packaging bottles, water bottles, pet bottles, books, dishes, cartons, cd, etc
It uses the shrink wrap in the product or package outside, through heating bind tightly shrink film products or packaging, it shows the appearance of items, improve product sales, increased sense of beauty and value
Widely used in food, medicine, hardware tools, daily necessities, electrical appliances, books, fruit, and other items packaging industry.
Automatic shrink packaging machine is a mechanical device and pneumatic components combined by the PLC and other peripheral circuits controlled automatic packaging equipment. Work position cylinder by magnetic switches and proximity switch detects and feedback to the PLC, the PLC sends a control command to a corresponding cylinder valve through the program to control the operation of the cylinder.
Technical Data
Heat Shrink Tunnel Machine |
|
Model |
LG-4035 |
Voltage |
380v, 50hz can customize |
Power |
7kW |
Max Load wight |
70kg |
Heating furnace dimension |
800×400*350mm |
Machine dimension |
1100×650×850mm |
Conveying speed |
0-10m/min |
Weight |
70kg |
