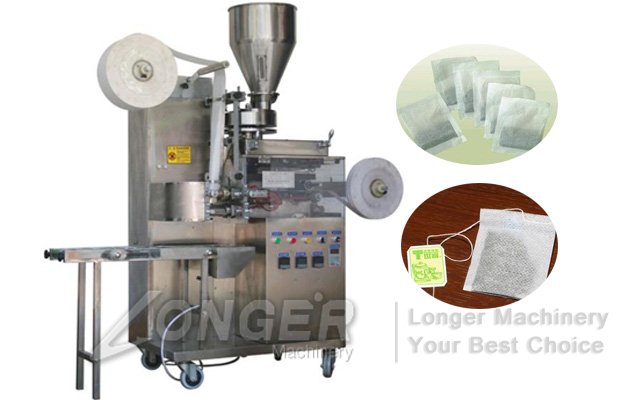

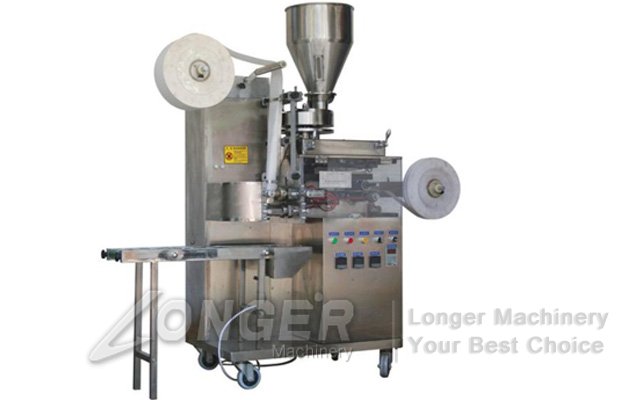

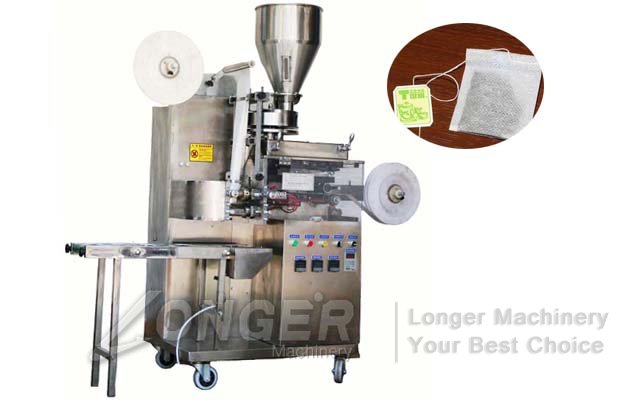

Single Layer Tea Packing Machine|Simple Tea Bag Making Machine

  • Material:tea,herbal tea,health tea,coffee
  • Capacity:30-60bag/min,can be adjusted
  • Loading Port:Qingdao Port
Share this Facebook LinkenIn Twitter Google+ Youtube
Single Layer Tea Bag|Coffee Bag Packing Machine is suitable for tea, herbal tea, health tea and other small particles grassroots class of bag disposable packaging. Adopt rotary filling working principle to fill and seal.The machine can finish automatic filling, sealing, film cutting, etc.

1. Adopt PID regulator temperature controller, temperature control more accurate;
2. PLC control machine motion, man-machine interface display, easy to operate;
3. All the contact materials are made of SUS304 stainless steel, a reliable guarantee of health products;
4. Part of the work cylinder using imported parts to ensure the accuracy and stability of their work.
5. The machine can complete the attachment flat cutting, date printing, easy to tear, and other functions.
Technical Data
Model LG
Application  Tea/herbal/Coffee etc
Packing Material  Tea Bag paper, cotton thread, label
Measuring Range  1.5-5g,3-15ml
Bag Size  Length 50-75mm,Width 55-75mm
Label Size  Length (18-23)Width 28mm
Capacity  30-60bag/min
Dimension  900*950*1800mm
Voltage  220V 50HZ
Powder  1.6KW
Weight  350kg
