Features

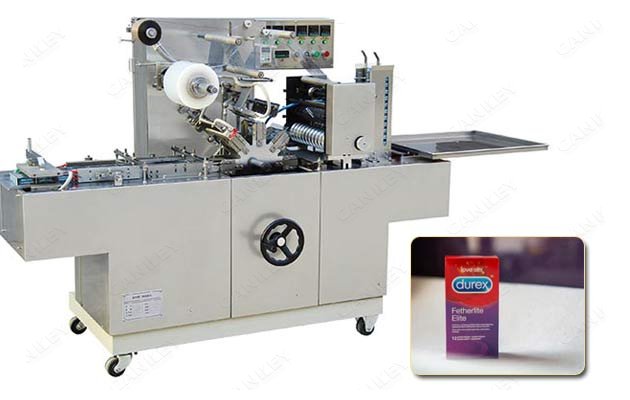

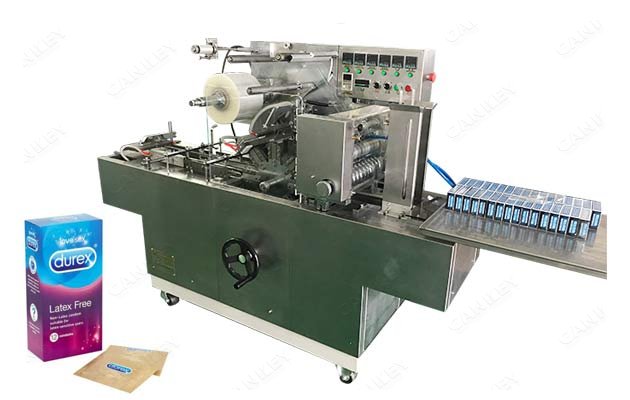

Automatic condom box wrapping machine is a fully automatic and multi-functional transparent membrane three-dimensional packaging machine, integrated with the latest automatic packaging technology, the highest speed of up to 80 boxes/min; Top sealing with envelope folding, hidden bottom seal, mechanical packaging molding, beautifully packaged, make condom case more aesthetically pleasing.
Diversified module design, a large range of packaging size, for cosmetics, health products production, "Many kinds, small batch" production characteristics, highlighting the speed, high precision, packaging and other advantages, to achieve the greatest degree of durability.
Diversified module design, a large range of packaging size, for cosmetics, health products production, "Many kinds, small batch" production characteristics, highlighting the speed, high precision, packaging and other advantages, to achieve the greatest degree of durability.
Condom Cellophane Wrapping Machine is an integrating machine, electricity and gas as a whole, has compact structure, beautiful performance, convenient operation and easily maintenance, small volume, light weight and high degree of automation, etc.

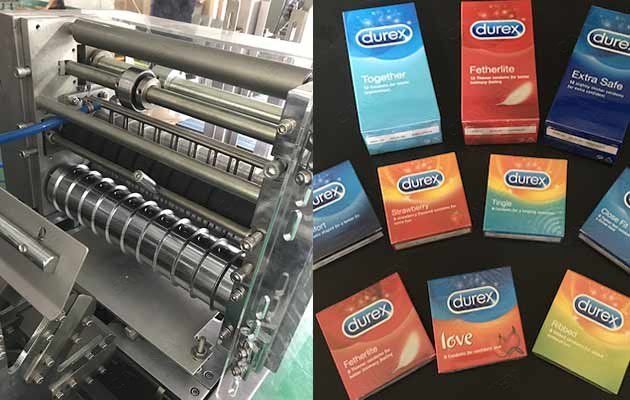

The work of automatic cellophane condom packing machine for condom can be finished by a series of cams in the machine driving various floating links and parts.Human-machine interface is realized in terms of multifunctional digital-display frequency-conversion stepless speed regulation, PLC programmed control technology, automatic box feeding and automatic counting and touch screen display, pneumatic film falling; the machine can be combined to use with otherproduction line.
Video:
The work of automatic cellophane condom packing machine for condom can be finished by a series of cams in the machine driving various floating links and parts.Human-machine interface is realized in terms of multifunctional digital-display frequency-conversion stepless speed regulation, PLC programmed control technology, automatic box feeding and automatic counting and touch screen display, pneumatic film falling; the machine can be combined to use with otherproduction line.
Video:
Technical Data
Model | CK-BTB-300A |
Packaging material | film and gold tear tape |
Packing speed | 40~80 boxes/min |
Max.package size | (L)240*(W)120*(H)60mm |
Power | 220V 50Hz 5kw |
Machine weight | 500kg |
Machine dimensions | (L)2000*(W)700*(H)1400mm |
