Features

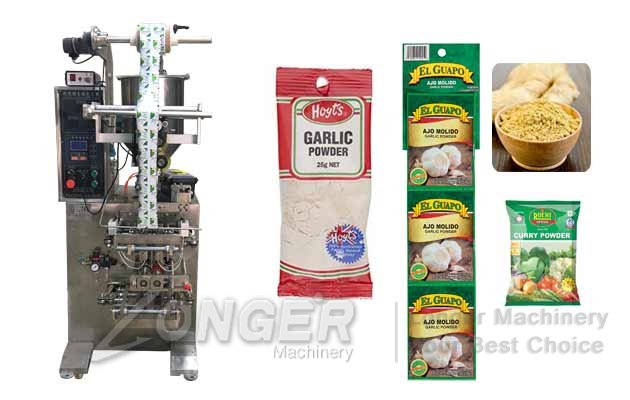

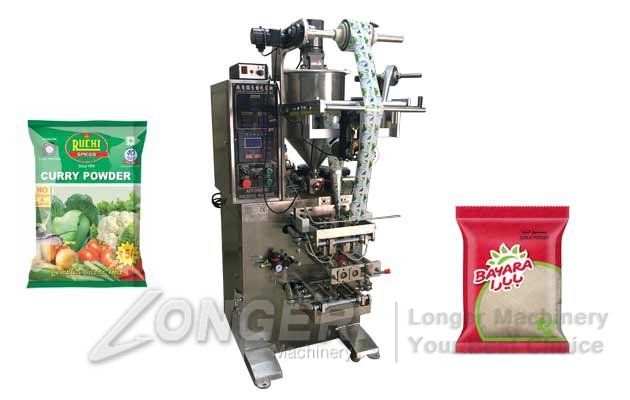

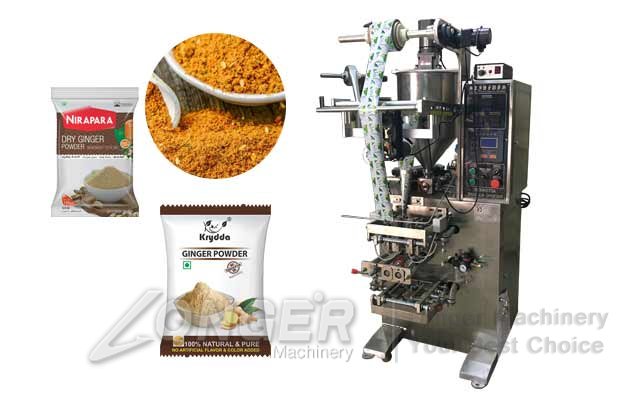

This ginger garlic powder packaging machine adopts correcting system controlled by microcomputer, owing to a response signal is handle and pass through
microcomputer it can accomplish whole set to synchronization, sack length, position fixing, voluntarily follow the tracks of light-mark and voluntarily diagnose trouble and show to screen. Suitable for package kinds of dry powder like spice powder, garlic powder, ginger powder, curry powder, chili powder, etc
This ginger garlic powder packing machine can automatically complete a series of actions, such as bag making, the measuring, filling, inflating, counting, sealing, code printing, material giving, stopping in certain quanting, fixde-bag cutting and same cutting. Advanced PLC control system, bilingual display in Chinese and English. The packaging speed and the length of the bag can be adjusted steplessly within a certain range without replacing parts. Dry powder packaging machine is with an advanced cursor tracking system, a complete logo pattern is obtained when packaging a color-coded packaging material.
This ginger garlic powder packing machine can automatically complete a series of actions, such as bag making, the measuring, filling, inflating, counting, sealing, code printing, material giving, stopping in certain quanting, fixde-bag cutting and same cutting. Advanced PLC control system, bilingual display in Chinese and English. The packaging speed and the length of the bag can be adjusted steplessly within a certain range without replacing parts. Dry powder packaging machine is with an advanced cursor tracking system, a complete logo pattern is obtained when packaging a color-coded packaging material.
Technical Data
Model | LG-280 | LG-350 | LG-500 |
Bag Size Making | L: 30-150mm | L: 40-180mm | L: 40-320mm |
W: 20-140mm | W: 40-150mm | W: 40-220mm | |
Thickness of Packing Film | 0.03-0.07mm | 0.03-0.07mm | 0.03-0.07mm |
Diameter of Rolling Paper | =<400 | =<400 | =<400 |
Packing Speed | 40-65 Bags/min | 30-65 Bags/min | 40-65 Bags/min |
Power | 1.8KW/220V | 1.8KW/220V | 1.8KW/220V |
Measure Range | 1-120 g | 30-250 g | 200-1000 g |
Dimensions (mm) | 720x980x1680 | 720x980x1980 | 950*1200*1900 |
Weight | 380kg | 400kg | 500Kg |
