Features

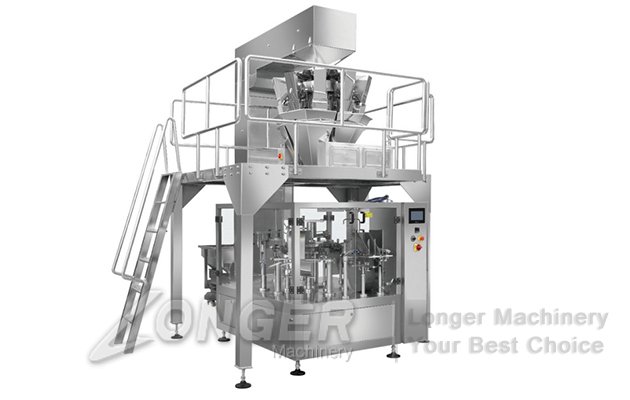

The automatic grain weighing packaging machine is suitable for automatic filling and packaging of solid materials such as grains, candy, nuts, dried fruits, raisins, peanuts, melon seeds, potato chips, chocolate, biscuits, etc.the machine composition:eight station rotary bag machine,10 1.6L electronic combination scal,Z-type material conveyor with vibration device,support platform.

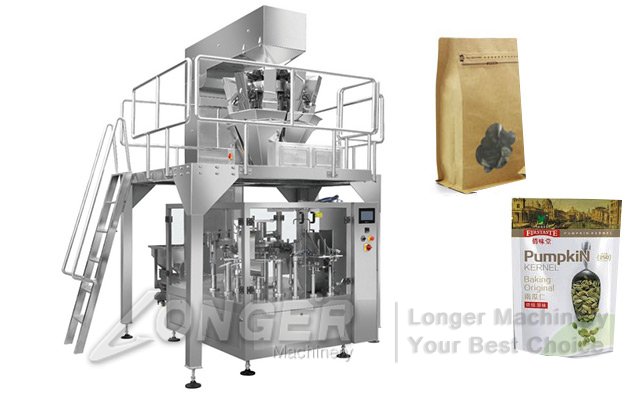

Eight station rotary bag machine:
Eight station rotary bag machine:
suitable for bag type:Stand-up pouch, tote bag, zipper bag, four-side bag, three-side bag, paper bag, M-fold bag or other compound bag.
Electronic combination scale machine:
1. Scope of application: Weighing of various granular, strip, powder and other materials. Such as melon seeds, almonds, pistachios, pine nuts, candy, jelly, beans, frozen food, pet food, all kinds of snack foods, hardware and daily chemicals.
2. Product Features:
· Modular control system, easy maintenance and low cost
·Professional digital weighing module (A/D module), good stability, high precision, A/D modules are interchangeable
·Set different rights management, easy to use, easy to manage
·Stepper motor drive is modular, easy to maintain and low cost

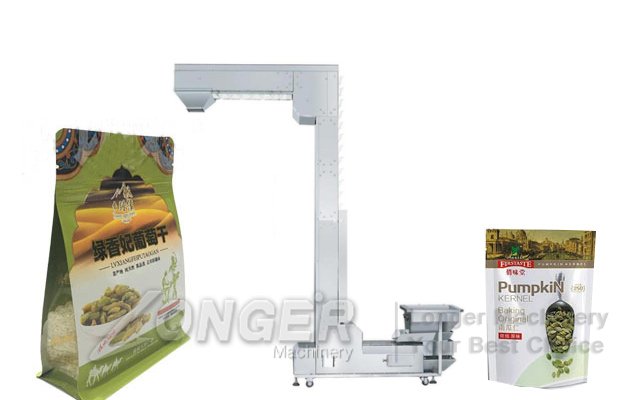

Z-type material hoist with vibration device machine
The hoist is suitable for vertical lifting of pellets in the food, food, feed and chemical sectors. The hoist is driven by the chain drive to lift the hopper for vertical conveying of particles and small pieces of material, which has the advantages of large lifting capacity and high lifting degree.

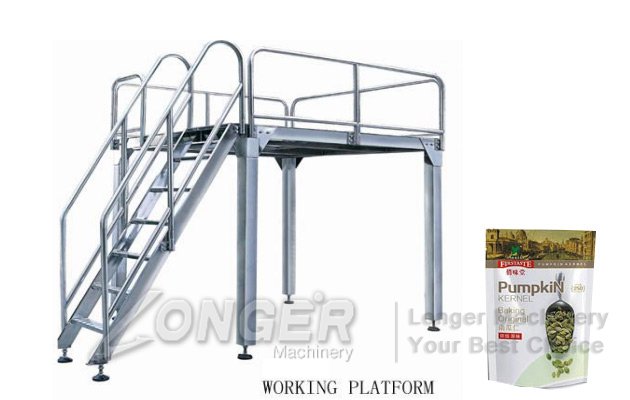

Support platform machine
It is used to support 10 electronic combination scales.The platform is firm and not easy to shake, beautiful and generous, the countertop is made of non-slip pattern aluminum plate, and the surrounding fence is practical and safe.
Video:It is used to support 10 electronic combination scales.The platform is firm and not easy to shake, beautiful and generous, the countertop is made of non-slip pattern aluminum plate, and the surrounding fence is practical and safe.
Technical Data
Model | LG-300 | |||||
Eight-station rotary bag machine |
10 head electronic scales | Z type material hoist | ||||
Prefabricated bag specifications |
Length 90-400mm Width 150-300mm |
Optional device |
Tread plate / collecting hopper / dispensing device / 10 inch touch screen |
Lifting height: can be determined by the customer (2-10m) |
Total power: 1000w | |
Packing speed |
10-50 bags/min (speed is determined by product attributes and fill level)) |
Single weighing range | 5-6500 grams | Lifting speed: 0-17m/min |
Lifting capacity: 5.5 cubic meters / hour |
|
Fill range | 5-1000g | Weighing accuracy range | Within ±2 grams |
Specifications: can be made according to customer's requirements, carbon steel spray or stainless steel, the contact with the material is food grade plastic |
||
Packaging accuracy | ≤±1% | Maximum speed | 55 packs / minute | |||
Air consumption | ≤0.5m3/min | Hopper capacity | 1600 ml | |||
power | 2.2kw | monitor | 7-inch touch screen | |||
power supply | 380V 50Hz/60Hz | power supply |
AC220V/110V ±10% 50Hz (60Hz) |
|||
total weight | 420kg |
