Automatic Bottle Labeling Machine|Round Bottle Labeling Machine

  • Material:bottle,label
  • Capacity:NA
  • Loading Port:Qingdao Port
Automatic Bottle Labeling Machine adopts automatic human-machine interface, simple operation, convenient. Simply click on to complete the corresponding action.
Performance Characteristics:
1.Imported electromagnetic clutch and high precision
2.Advanced anodizing aluminum alloy, longer life.
3.Using the best motor can meet the heavy load, and long time operation.
4.All parts and standard adopt stainless steel material
5.PLC control, human-machine interface control panel is more fashionable
6.Adopt Import inspection standard optical coupling, to guarantee the high precision accuracy
7.Label Single or double tags round bottle.

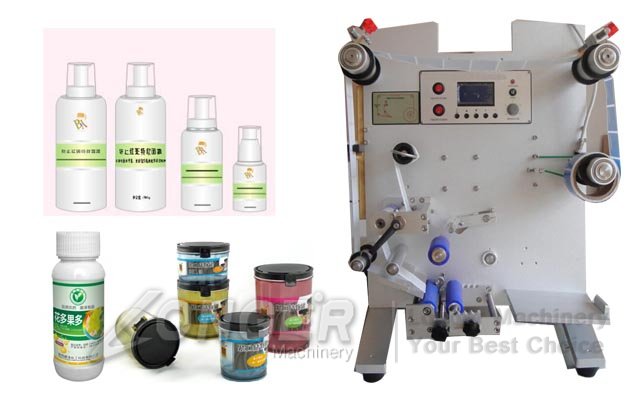

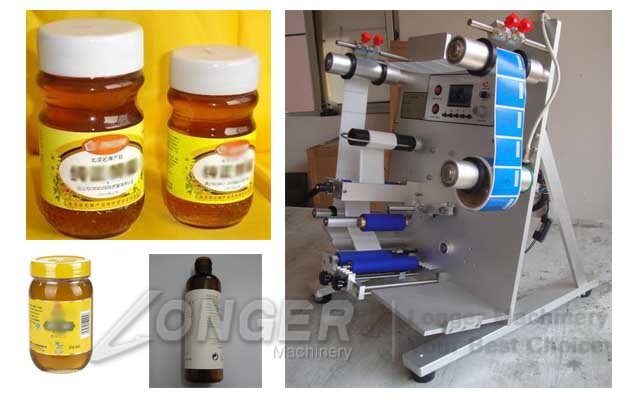

This Vertical round bottle labeling machine is mainly used in cosmetics, food, cosmetic, pharmaceutical and other industries of product labeling, which is suitable for less and a great variety of round bottle containers,Double label round bottle,A single tag round bottles,With code label round bottle labeling, code such as: glass bottle, plastic bottles, tins and the first class.
Technical Data
Model LGFH-130
voltage /Power AC200V/50HZ      150W
Label size Max:120(W)*400(L)mm
  Min :10(W)*30(L)mm
Round bottle size Max:Φ125mm,Min :Φ20mm,
Label inner core dimension inner diameterΦ75mm
external diameterΦ300mm
Net weight 38kg
Outline dimensions 580*680*860mm
