Vinegar Pouch Packaging Machine|Soy sauce Filling Sealing Machine
  • Material:water,juice,vinegar,soy sauce,drinkings,etc
  • Capacity:20-60bags/minute,can be customized
  • Loading Port:Qingdao/Tianjin port

Thank you for visiting our site! Please feel free to submit this form with any questions or comments. We will answer your message within 24 hours.

Features

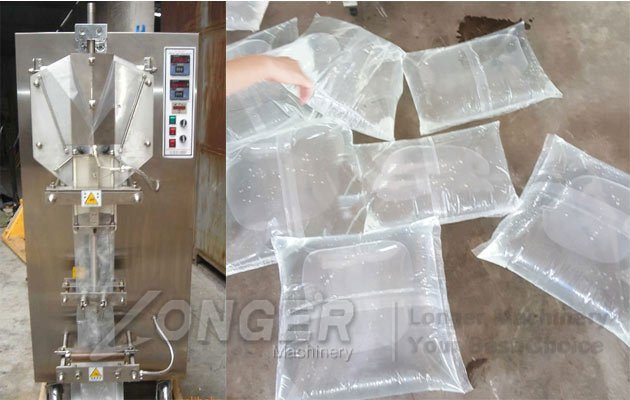

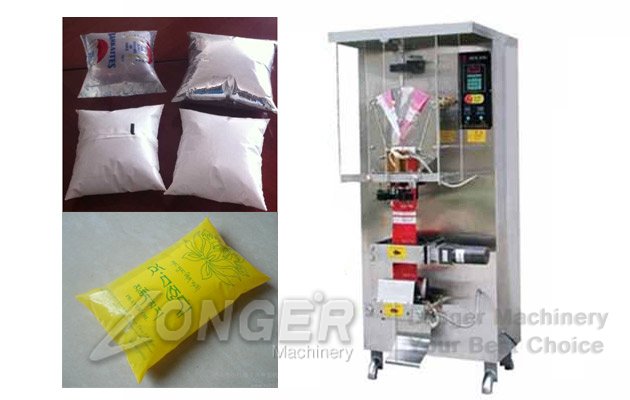

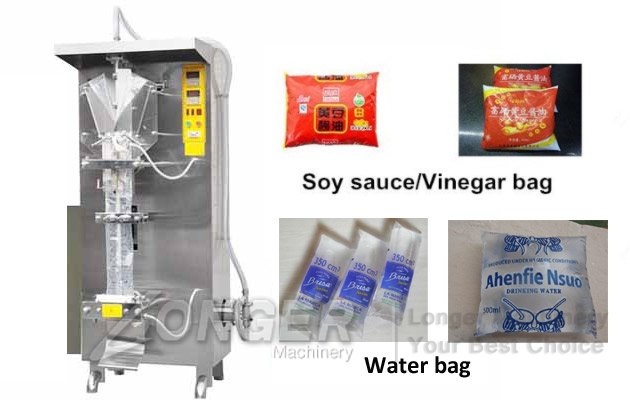

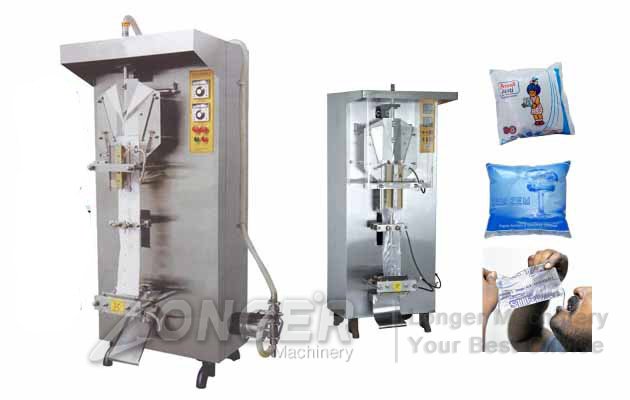

This is automatic vinegar Pouch Packaging Machine|Soy sauce Filling Sealing Machine, mainly used to pack liquid into pouch. This machine can also be used to pack water, juice, vinegar, soybean sauce and other drinkings.
1.The high degree of automation, automatic quantitative filling, bag making, sealing code;
2 Before packing to ultraviolet disinfection of packaging film, Meet a criterion of food hygiene requirements;
3 Cursor recognition function to prevent accumulation error, more precise for cutting bag;
4 Use stainless steel equipment.
5 Use self-priming pump to quantitative filling ;
6 Straight hot sealing and cutting, bag size, packing weight, easy to adjust reliable sealing and cutting temperature.

Technical Data

Model LG-180J LG-688J
Bag size L: 50-170mm
W: 20-135mm
L: 50-300mm
W: 30-200mm
Capacity 20-40 Bags/min 28-60 Bags/min
Filling Range 5-300 ml 5-1000 ml
Power 220v, 50Hz, 1.5kw 220v, 50Hz,1.8kw
Weight 300 kg 350 kg
Dimension 1000*860*1900 mm(L*W*H) 1100*1000*2100 mm(L*W*H)
