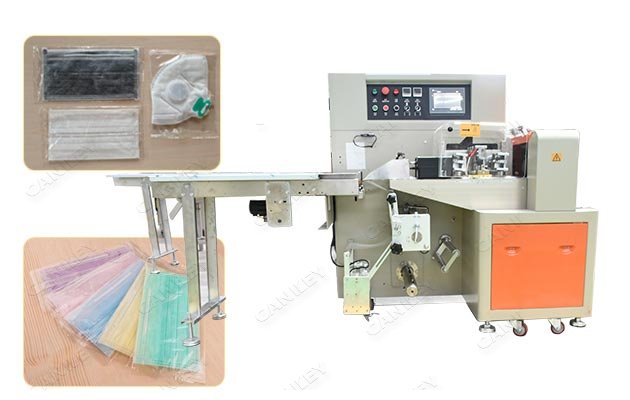

Medical Mask Packaging Machine
  • Material:mask,glove,wipes,parts etc.
  • Capacity:40~230 bags/min
  • Loading Port:Qingdao Port

Thank you for visiting our site! Please feel free to submit this form with any questions or comments. We will answer your message within 24 hours.

Features

Medical Mask Packing Machine mainly full computer control, frequency conversion adjustment, high sensitive eye tracking, the sealing temperature independent control, suitable for a variety of packaging materials, mechanical structure is simple;Easy maintenance, less wear and long life.Only needs to be set by the touch screen, the machine will automatically complete Bag making - bean - material filling sealing - measurementand and other.

Features:
1. Dual frequency control, the bag automatically cut off long, no items are not packaged, saving time and film.
2. PLC control interface, only need to set parameters, the machine automatically complete the packaging.
3. Fault self-diagnosis function, fault display at a glance.
4. High sensitivity photoelectric color tracking, digital input sealing and cutting position, so that more accurate sealing and cutting position.
5. Independent PID temperature control, suitable for all kinds of packaging materials.
6. A wide range of packaging, size can be adjusted within the scope.

Technical Data

Model LG-400
Film Width Max. 400mm
Bag length 180-440mm
Bag width 50-190mm
Bag height Max.60mm
Film Diameter Max. 320mm
Packing speed 40~230 bags/min
Power supply 110V/60 H Z,2.4 KW
Machine size (L)4020X(W)770X(H)1450mm
Machine weight 900Kg
