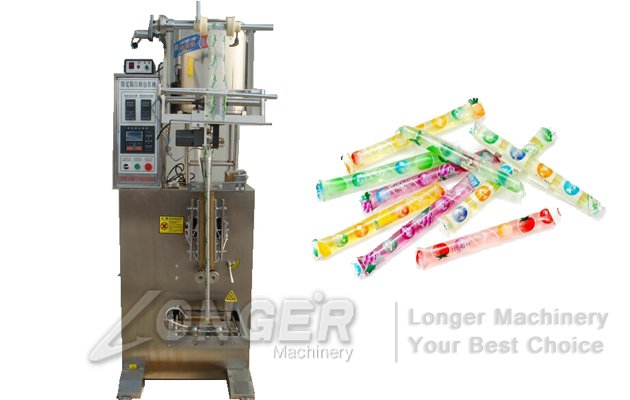

Liquid Jelly Stick Packaging Machine|Popsicle Stick Filling Machine
  • Material:jelly
  • Capacity:30-160pcs/minute,can be customized
  • Loading Port:Qingdao Port

Thank you for visiting our site! Please feel free to submit this form with any questions or comments. We will answer your message within 24 hours.

Features

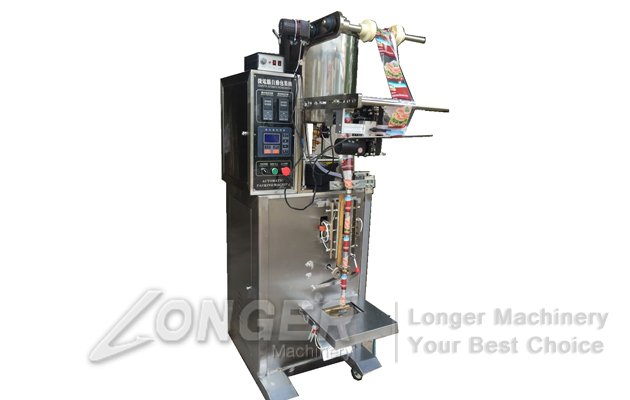

Introduction of Jelly Sticks Filling Machine:
1.This machine is mainly used in jelly, liquid ice lolly, pure water, milk, soy sauce, vinegar, and medical and chemical liquid quantitative packaging can automatically complete olenoid valve control flow measuring--coding (optional)--bag making--filling--sealing--counting.
2.Computer/PLC control system, photoelectric tracking, maximizes the whole machine’s control precision, reliability and the intellectualized degree. The packing size,weight can be adjustable. Also, can be customize according to clients special requires.
3.Has fault display system, easy to operate and maintain. Safety protection.
4.Machine body and all food touching part are made by stainless steel. Have high popular in Europe, South Africa, etc.
Advantage:
Computer/PLC control system, photoelectric tracking, maximize the whole machine's control precision, reliability and the intellectualized degree.
Video:

Related Product: Jelly Cup Filling Sealing Machine

Technical Data

Model LG-330Y LG-330TY
Packing speed 30-80 bags/min 60-160 bags/min
Packing range 5-200ml 5-200ml
Film width ≤ 280mm ≤ 280mm
Making bag size L:50-330mm, W: 15-130mm L: 50-330mm, W: 15-130mm
Packing accuracy ≤ ±1% ≤ ±1%
Power 1.6 KW 3.2KW
Power supply AC220V, 50/60Hz AC220V, 50/60Hz
Seal type Pillow seal, 4 sides seal Pillow seal, 4 sides seal
Net weight 250kg 500kg
Machine dimension L600*W790*H1800mm L1580*W600 *H1800mm
