Features

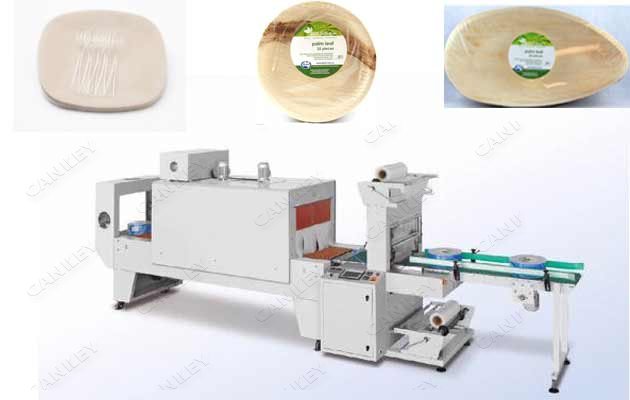

This shrinkage wrap machine for leaf plate consists of two parts: heat shrinking machine and sealing cutting machine. The cutlery shrink wrap machine adopts "L" type sealing and cutting, and then automatically transfers to the shrinking machine room to complete the shrinking process. The automatic shrink packaging machine adopts heating and stickiness free seal knife, which ensures the machine running well and without smoke.
Main features of Tray Shrink Wrapping Machine:
1. Adjustable time, transferring the products to the tunnel after sealing and cutting.
2. Working with shrink tunnel, high efficiency, more convenient.
This leaf plate shrink wrapping machine adopts Siemens plc and colorful touch screen, Omron temperature controller, timer, relay, switch, and sensor. Optional output roller table or conveyors are available. It is widely used in different industries like to wrap books, notebooks, cosmetic boxes, phone boxes, toy boxes, etc.
Video:
Main features of Tray Shrink Wrapping Machine:
1. Adjustable time, transferring the products to the tunnel after sealing and cutting.
2. Working with shrink tunnel, high efficiency, more convenient.
3. This machine can collate bottles (round or square), cans, gable cartons, and tetra cartons automatically. It can connect filling machine or labelling machine to make production line unmanned.
4. Adopt durable “u” shape alloyed sealing knife and saw teeth cutting knife with anti-stick Teflon coats supported by four columns, the sealing line is very strong and can use thicker PE film for heavy products.
5. Rows can be set on the touch screen. When product size changes only adjust packing size on the machine within a short time without changing any molds.
This leaf plate shrink wrapping machine adopts Siemens plc and colorful touch screen, Omron temperature controller, timer, relay, switch, and sensor. Optional output roller table or conveyors are available. It is widely used in different industries like to wrap books, notebooks, cosmetic boxes, phone boxes, toy boxes, etc.
Video:
Technical Data
| Sealing Cutting Machine Model | CK-FL450 |
| Power(KW) | 1.5 |
| Voltage | AC220V/50/60HZ |
| Max Packing Size L*W(MM) | 550*450 |
| Max Sealing Size(MM) | ＜500 |
| Packing Speed(bag/min) | 15-30 |
| Gas Source | 6-8Kg/cm^2 |
| Shrink Film | POF/PE |
| Machine Size | 1650*880*1450 |
| Weight | 280 |
| Shrink Wrapping Machine Model | CK-BS4525LA |
| Voltage | 220-380V/50-60HZ 3Phase |
| Power（KW） | 6.5 |
| Load（KG） | 30 |
| Heat Tunnel Size（mm） | 900*450*250 |
| Machine Size（mm） | 1200*700*1000 |
| Transfer Speed(m/s) | 0-10 |
| Weight（KG） | 120 |
