Automatic Granule Packaging Line|Chips Snacks Packing Solution

  • Material:chips, seeds, nuts, beans, sugar etc
  • Capacity:10-70pc/min
  • Loading Port:Qingdao Port
Share this Facebook LinkenIn Twitter Google+ Youtube
Features
This automatic granule chips packing line with multihead weigher is suitable for automatic packaging of irregular blocks and granules, such as: puffed food Products, potato chips, crisps, jellies, candy, pistachios, apple slices, dumplings, cookies, dried fruits, sunflower seeds, roasted goods, dumplings, medicinal materials, quick-frozen foods, etc.

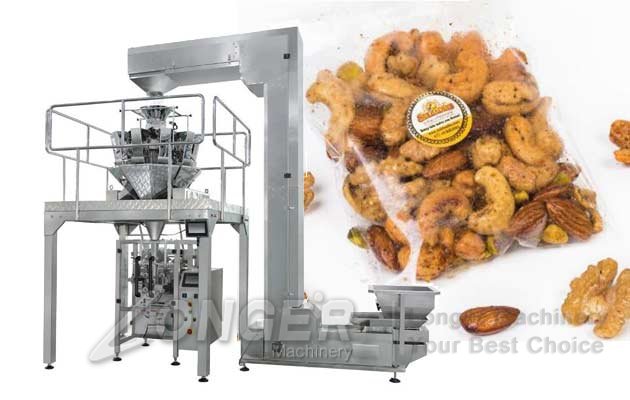

granule chips packing machine
This set of automatic chips weighing and packaging system is consisted of:
① Vibration feeding Z-type material lifting equipment ② Computer combined weighing equipment ③ Automatic vertical packaging equipment ④ Working platform ⑤ Finished product conveying equipment
The main performance and structural characteristics of automatic granule chips packing line:
Fully automatic material feeding, weighing and weighing, filling and bag making, inflation / exhaust, print the date, the entire process of finished product transportation; high measuring accuracy, high efficiency, no scraps.
The automatic chips packing machine adopts PLC control servo motor, and double or single tensile membrane structure, and our machine’s sealing and cutting positions adopt automatic correction device, motor constitute a large display touch screen drive control core; Maximize the whole machine's control precision, reliability and the intellectualized degree.

Video:


Technical Data
Electronic scale Vertical packaging machine
Model LGA10-1.6 model LGLK520
Voltage AC110/220V Film width MAX 520mm
Power frequency 50/60HZ Bag width 90-250mm
Rated current 8A Bag length 80-350twice pull film450mm
Power 1.5KW Packing speed 10-70pc/min
Weighing number 10 Measuring range 150-2000ml
Weighing rang 3-6500g membrane thickness 0.04-0.10mm
Single weighing range 10-1000g Power Specifications 3kw/220v 50-60hz
Weighing capacity 1600ml Machine size 1430×1200×1700
Maximum weighing speed 70 pc/min Machine quality 650kg
Product preset number 100 Air consumption 0.4cubic / minute 0.6mpa
Long form factor 1050mm Packaging material Bopp/cpp. Bopp/vmcpp bopp/pe.
Pet/vmpet/pe  pet/al/pe  ny/pe   pet/pet
Wide size 900mm
High profile 1330mm
Machine weight 330kg
monitor 7inch
Weighing accuracy plus or minus 0.3-3 grams
