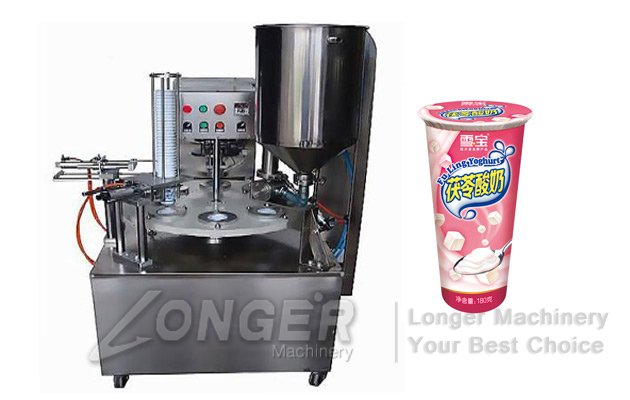

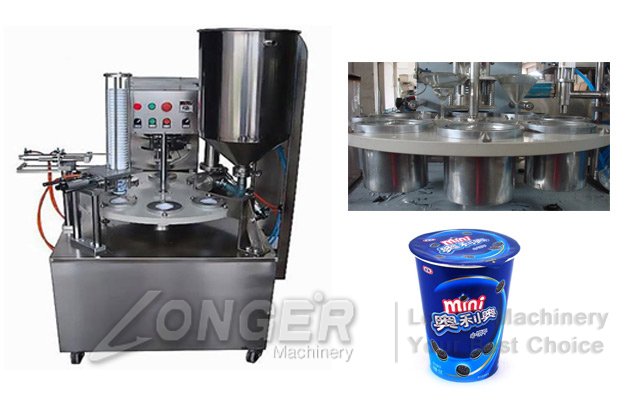

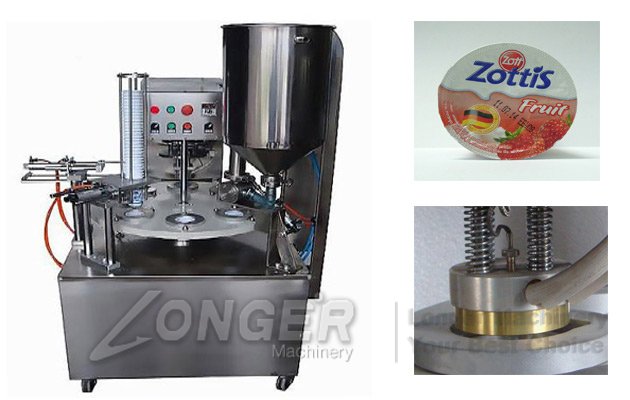

Rotary Type Automatic Cup Filling Sealing Machine|Cup Filling Machine

  • Material:yogurt,milk,soy milk,fruit juice,spices,jams,tofu and other products
  • Capacity:800-1000 cups/hour
  • Loading Port:Qingdao Port
Share this Facebook LinkenIn Twitter Google+ Youtube
Product introduction:
1.Mold: made by cnc,high precision .Using the acid aluminum alloy material,can prevent rust and corrosion .Made by CNC machine,high precision ,Molds of various shapes can be customized.
2.Control Systems: Intelligent,Precise Movements.Omron relay ,PLC programmable control ,stable performance,the main components are well known brand.
3.Falling Cup : unique the linkage design .when the template to send a signal to stop,so that the cup can accurtely falls template hole.
4.Filling System: customized according to the material ,Depending on a variety of custom material filling device,are non-contact filling,meet the health requirements.
5.Put Film System: aytomatic Correction,Precise Positioning.Equipped with photoelectric tracking system,automatic film feeding,film pattern with cup accurate alignment,automatic correction,make sure the entire pattern .
6.Sealing System: twice sealing,smooth film .intelligent temperature control device,temperature stable,small function range,two hot sealing(adjustable pressure),sealing smooth and beautiful .
7.Off Cup System: the can be customized automated off cup systems,automaticlly afteroff cup ,the cup transported to the set position .
cup filling machine
Features of the machine:
1.This sheet film function machine can falling cup automaticly ,then filling materials,and put cover automaticlly ,at last sealing the cup .
2.Applicable to all kinds of yogurt, milk, soy milk, fruit juice, spices, jams, tofu and other products
3.Plastic can be done automatically (paper) cup falling cup, filling, date printing, optical positioning, sealing, automatic core cutting and waste film recycling function.
4.Machine with programmable logic controllers, Taiwan pneumatic control components, intelligent digital temperature control system with high seal strength, good sealing, low failure rate, and small size, is the product of choice for business automation.
5.This machine is very easy to operate,before you want to buy this machine ,you should confirm to us your cup’s size,and the weight of per cup ,and your capacity requirements ,then i can suggest the best suitable machine for you .
Technical Data
Model LG-900P
Production capacity 800-1000 cups/hour
Filling volume 50-300ml
Voltage 380V/50Hz
Air consumption 0.6㎥/min
Power 4kw
Dimension 1250*1250*1650mm
Weight 250kg
