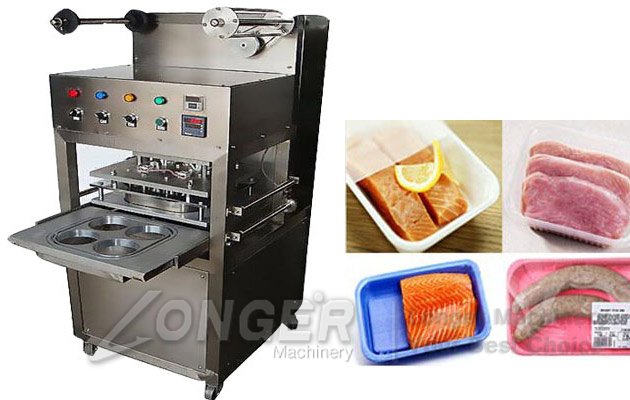

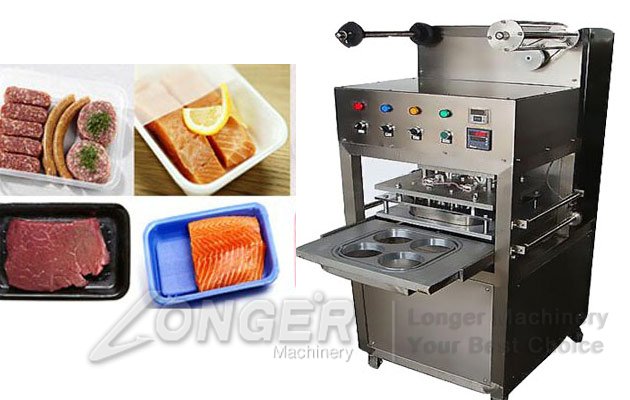

LGS-4 Type Tray Sealing Machine|Automatic Tray Sealing Machine

  • Material:plastic film and aluminium film
  • Capacity:400 trays/hour
  • Loading Port:Qingdao Port
Share this Facebook LinkenIn Twitter Google+ Youtube
Features
It is a technique used for prolonging the shelf-life period of fresh or minimally processed foods. In this preservation technique the air surrounding the food in the package is changed to another composition.This way the initial fresh state of the product may be prolonged.It is the shelf-life of perishable products like meat,fish,fruits and vegetables that will be prolonged with MAP since it slows the natural deterioration of the product.MAP is used with various types of products,where the mixture of gases In the package depends on the type of product,packaging materials and storage temperature. Meat and fish need very low gas permeability films so for non-respiring products (meat,fish,cheese etc.) high barrier films are used.
cup stealing machine
Advantage of the machine:
1.The use of electricity, gas, machine control, human-machine interface dialogue by a programmable logic controller (PLC) with touch screen,
2.Each part of the action and control parameters can be set by the PLC, modify. Convenient and reliable control, low failure rate.
3.After the goods have been filling the box into the lower cavity packaging process automatically: vacuum, inflatable - hot sealing -cut - packaging products discharged.
4.Chassis and other major components made of stainless steel, in line with food hygiene requirements.
5.Stainless steel frame meets to food standard.
6.The performance of the machine is more stable and safe.
Technical Data
Model LGS -4
Power 220V  50/60HZ
Capacity 400trays/hour
Tray Size 100*60mm
Power consumption 2000w
Machine dimension 900*1000*1450mm
Machine weight 100-170 Kg
Main function pneumatic sealing machine
sealing with gas(nitrogen)
machine slide mould automatically put tray on mould manually
machine slide mould automatically gas pneumatic sealing
machine slide mould automatically take tray outside mould manually
