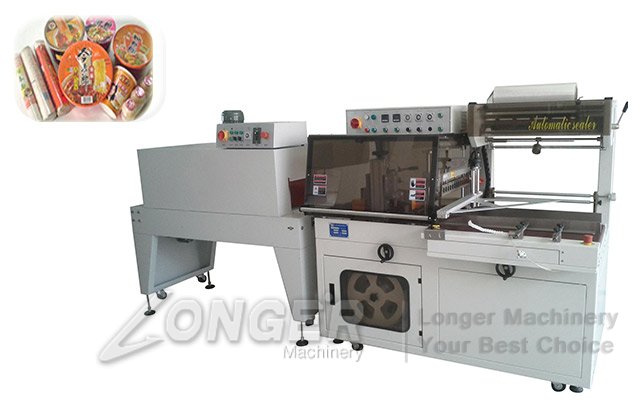

High Speed Shoe Shrink Wrapper Machine
  • Material:Shrinking,sealing,cutting bottle package.
  • Capacity:Can be customized
  • Loading Port:Qingdao Port

Thank you for visiting our site! Please feel free to submit this form with any questions or comments. We will answer your message within 24 hours.

Features

L type shrink wrap machine is shrink film wrapped in packaging materials outside, after heating, the contraction film shrink close to the surface of the package to fully display the appearance of goods to increase the beauty and value. At the same time of the packed goods to seal, moistureproof, prevent pollution, prevent breakage, combination packing suitable for use in a variety of items.
It is designed according to the characteristics of packaging materials, packaging in the form of closed packaging, reasonable structure, stable operation, packaging speed, especially for assembly line operations.

Features:
1-use of Japan's Panasonic PLC programmable controller, high-speed operation, high performance;
2-separation design, automatic packaging machine and thermal shrinkage furnace, used in combination; When packing size change, adjustment is very simple, without changing the mold and the bag making machine
3-high-performance operation, reduce labor costs;
4-use of electronic continuously variable transmission, stable and reliable, long life, low noise.
5-special insulation layer design, the furnace and chassis effective insulation, insulation, energy saving.

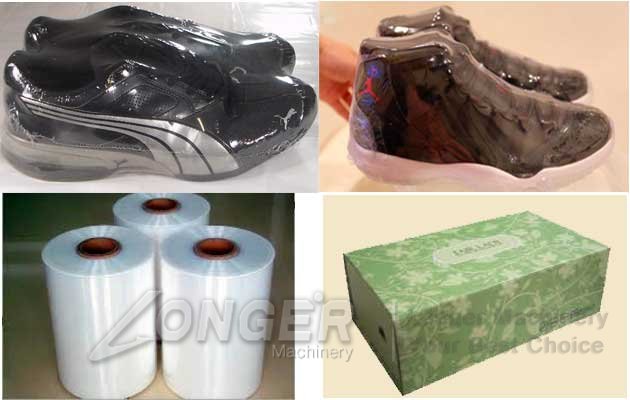

This machine can be packing: cosmetic box, shoes box, gift box, mobile phone boxes, bottles combination packing and so on.

Detail Image:

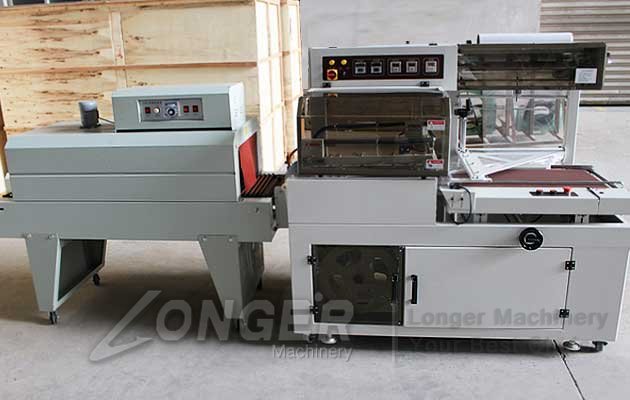

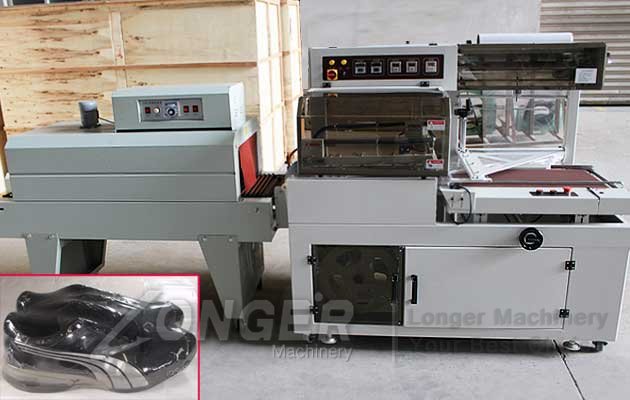

shrink packing machine

Technical Data

Automatic Sealing and Cutting Machine
Model LGQL-5545 Power 220V 1.3KW 60HZ
Max Packing Size H<130mm
L+2H<220mm
W+2H<450mm
Max Sealing size L550*W450mm
Packing speed 5-30pcs/min Pressure 5kg/square
Dimension 1700*900*1400
mm
Weight 320Kg
Heat shrinking Machine
LGBS-4525AL Heating power 8.5KW
Max Size of Packing chamber W400*H200mm
1600*730*1300
mm
Weight 1200*450*250
mm
