Features
This set of A4 Copy Paper Cutting and Packaging Machine is consisted of Paper Cutting Machine and Paper Packaging Machine.

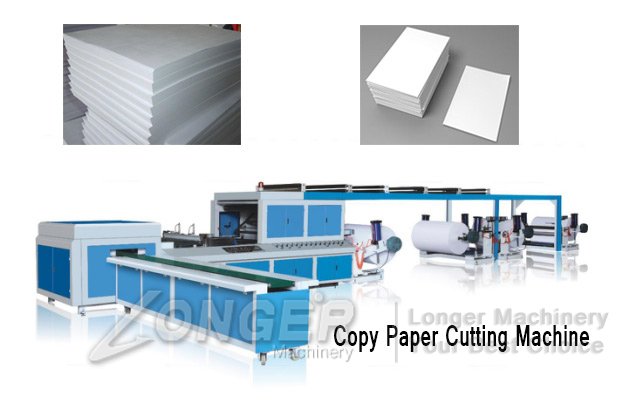

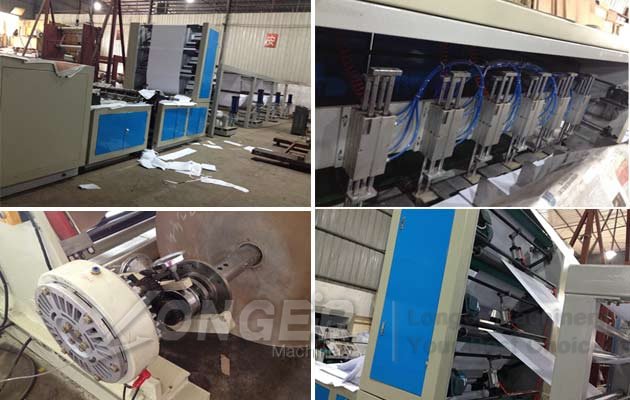

Advertage of the Paper Cutting Machine:
1. This machine is suitable for cutting original paper roll.
2. This machine adopts PLC touch screen control, servo motor(Huichuan Brand), control, fixed-length cut.
3. Transmission using pneumatic, photoelectric sensors, centralized control, the machine set of light, electricity, gas one, simple, shear and high precision, mechanical stability, low noise.
4. Motor speed regulation, automatic counting, alarm stop, and magnetic tension control. Can longitudinal sections of cutting, waste side with fan automatically excluded.
Advertage of the Paper Cutting Machine:
1. This machine is suitable for cutting original paper roll.
2. This machine adopts PLC touch screen control, servo motor(Huichuan Brand), control, fixed-length cut.
3. Transmission using pneumatic, photoelectric sensors, centralized control, the machine set of light, electricity, gas one, simple, shear and high precision, mechanical stability, low noise.
4. Motor speed regulation, automatic counting, alarm stop, and magnetic tension control. Can longitudinal sections of cutting, waste side with fan automatically excluded.
Video:

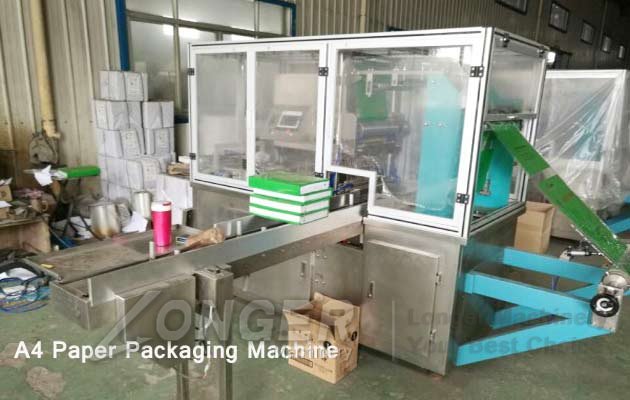

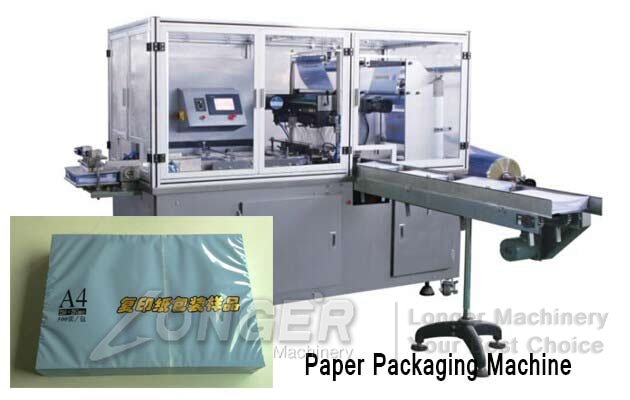

Paper Packaging Machine: The machine using material is cellophane and OPP Film, is a common machine for packaging different specifications of hard paper packing box. Transparent paper/film and a printed graphic or holographic laser mark folding line are bonded by adhesive, convenient for unpacking and anti-counterfeiting. This cellophane packaging machine relys on a series of cams within the machine, which drive a variety of connecting rod and components to complete working. It uses multi-function digital frequency stepless speed control, PLC programming control technology, automatic feeding box, automatic counting, touch display to achieve human-computer interface. Pneumatic falling film, at the same time many boxs packing, machine is working stable.
Technical Data
| Paper Cutting Machine | Model | LGJX-1300 |
| Effective width | 1300mm | |
| Maximum diameter of raw materials | Φ1200mm | |
| Paper Weight Range | 75-85g roll paper | |
| Cutting specification | A3(420*297)mm | |
| A4(210*297)mm | ||
| Cutting speed | 10-100times/min | |
| Cutting precision | ±0.5mm | |
| Total power | 20kw | |
| Weight | 7500kg | |
| Dimensions（L×W×H) | 17500*2250*2000mm | |
| Paper Packaging Machine | Model | LG-297C |
| Packing Speed | 10-15pcs/min | |
| Packing Specification |

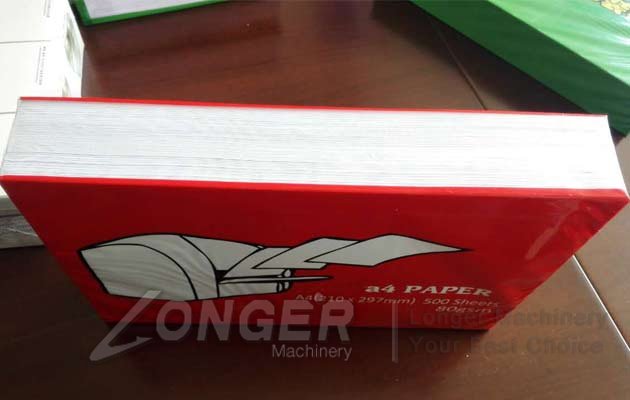

297*210*(48-60)mm (If based on A4 paper, pack 500pcs) |
|
| Voltage |
220V, 50Hz, Single Phase 380V, 50Hz, Three Phases |
|
| Power | 4.5kw | |
| Air Pressure | 0.4Mpa | |
| Dimension | 3200*1100*1900mm | |
| Weight | 1200KG | |
| Suitable Film |
Inner Roll Diameter 76mm Roll Film Max Diameter is 800mm |
